Industrial Wireless LAN

Ethernet Direct new series of Industrial Wireless LAN (WLAN) are robustly designed to tolerate harsh industrial environments, such as high electromagnetic immunity to repel electromagnetic disturbances, galvanic isolation to guard against voltage instability, extreme temperature operation.



Product Features

  • High Performance Wireless Technology
  • Compliant with IEEE standards
  • Supports advance MIMO (2T2R) technology with 2 x 2.4GHz radio platform
  • Supports high data rate up to 300Mbps (2T2R)
  • Supports radio frequency band from 2.412 to 2.472 GHz
  • Supports flexible operating modes selection, options including AP/WDS/Client Bridge + Repeater AP/CPE + Repeater AP
  • Supports implementation method on point to point (PtP) and point to multi-point (PtMP)
  • Supports advance wireless functions of Station Separation, VPN Pass-Through (PPTP, L2TP, IPSEC), QoS (WMM), Spanning Tree settings
  • Flexible Software configuration through WEB GUI interface for easy management
  • Strong Network Security with 64/128/152-bit WEP encryption, WPA/ WPA2, 802.1X and hide SSID in beacon
  • PoE+ (802.3at) compliant (pin out 4,5,7,8, Alternative B)
  • Supply with external 48VDC PoE injector supports 100 to 240VAC
  • Robust weatherproof IP68 housing protection
  • Waterproof Power over Ethernet connector



Product Features

  • Compliant with IEEE standards
  • Supports advance MIMO (2T2R) technology with 2 x 5GHz radio platform
  • Supports high data rate up to 300Mbps (2T2R)
  • Supports radio frequency band from 5.15~5.35 GHz / 5.47~5.725 GHz / 5.725~5.825 GHz
  • Supports flexible operating modes selection, AP / WDS / Client Bridge + Repeater AP
  • Supports implementation method on point to point (PtP) and point to multi-point (PtMP)
  • Supports advance wireless functions of Station Separation, VPN Pass-Through (PPTP, L2TP, IPSEC), QoS (WMM), Spanning Tree settings
  • Flexible Software configuration through WEB GUI interface for easy management
  • Strong Network Security with 64/128/152-bit WEP encryption, WPA/ WPA2, 802.1X and hide SSID in beacon
  • PoE+ (802.3at) compliant (pin out 4,5,7,8, Alternative B)
  • Supply with external 48VDC PoE injector supports 100 to 240VAC
  • Robust weatherproof IP68 housing protection
  • Waterproof Power over Ethernet connector



Product Features

  • 10/100/1000Base-T(X) RJ-45
  • Supports frequency range (2.400~2.483 GHz, 4.93~5.35 GHz, 5.5~5.7 GHz, 5.725~6.070 GHz)
  • 2 x 2 MIMO options:
    • 2.4 GHz: 5dBi Omni (external Mounting), Range is about 300~350m
    • 5 GHz: 18dBi Panel (Built-in), Range is about 3~5km (backhaul application)
  • 2.4 GHz: External Omni from 5~12dBi, range is up to 600m (package included 2 x 5dBi Omni)
  • Support Wireless Mesh operation
  • Support operating mode: Base Station/CPE/Bridge(PtP)/MESH (Peer to Peer)
  • Supports bandwidth adjust at 5/10/15/20/30/40/52MHz
  • Supports min. frequency channel adjust at 2.5MHz
  • Output Power: Up to 27dBm (500mW)
  • Data Rate:
    • IEEE 802.11a/n: Up to 54 Mbps
    • IEEE 802.11b/g: Up to 54 Mbps
    • IEEE 802.11n: Up to 300 Mbps
  • Built-in GPS Module, optional GPS antenna
  • PoE+ (802.3at) PD (pin out 1,2,3,6)
  • Supply with external 48VDC PoE injector supports 100 to 240VAC
  • Robust weatherproof IP68 housing protection
  • Waterproof Power over Ethernet connector



Product Features of Omni-directional Antennas

  • N-Male connector
  • V.W.S.R < 2.0
  • V.W.S.R < 1.5 (LA-060-A)

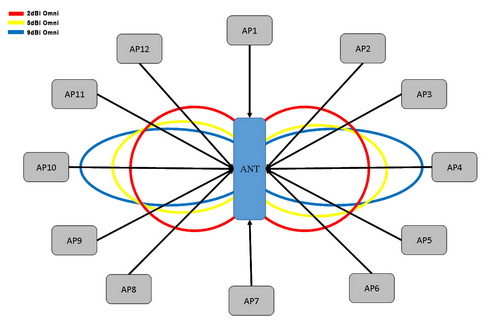

Radiation Pattern Example of Omni-directional Antenna

From the above diagram, there are 12 wireless APs installed, and if you wish to get most of the response from AP search with better signal, the antenna selection will be 2dBi > 5dBi > 9dBi.

Please be noted, the high gain antenna is not a guaranty to reach more wireless AP, instead from this diagram you can see the 9dBi antenna can only get good signal from AP4 & AP10, the other APs might be hard to reach or even you can connect you will be getting weak and unstable signal.
